Hydrogen Recirculation Pump, Ejector, Hydrogen Injector, and Hydrogen Subsystem Testing Platform

Product Features

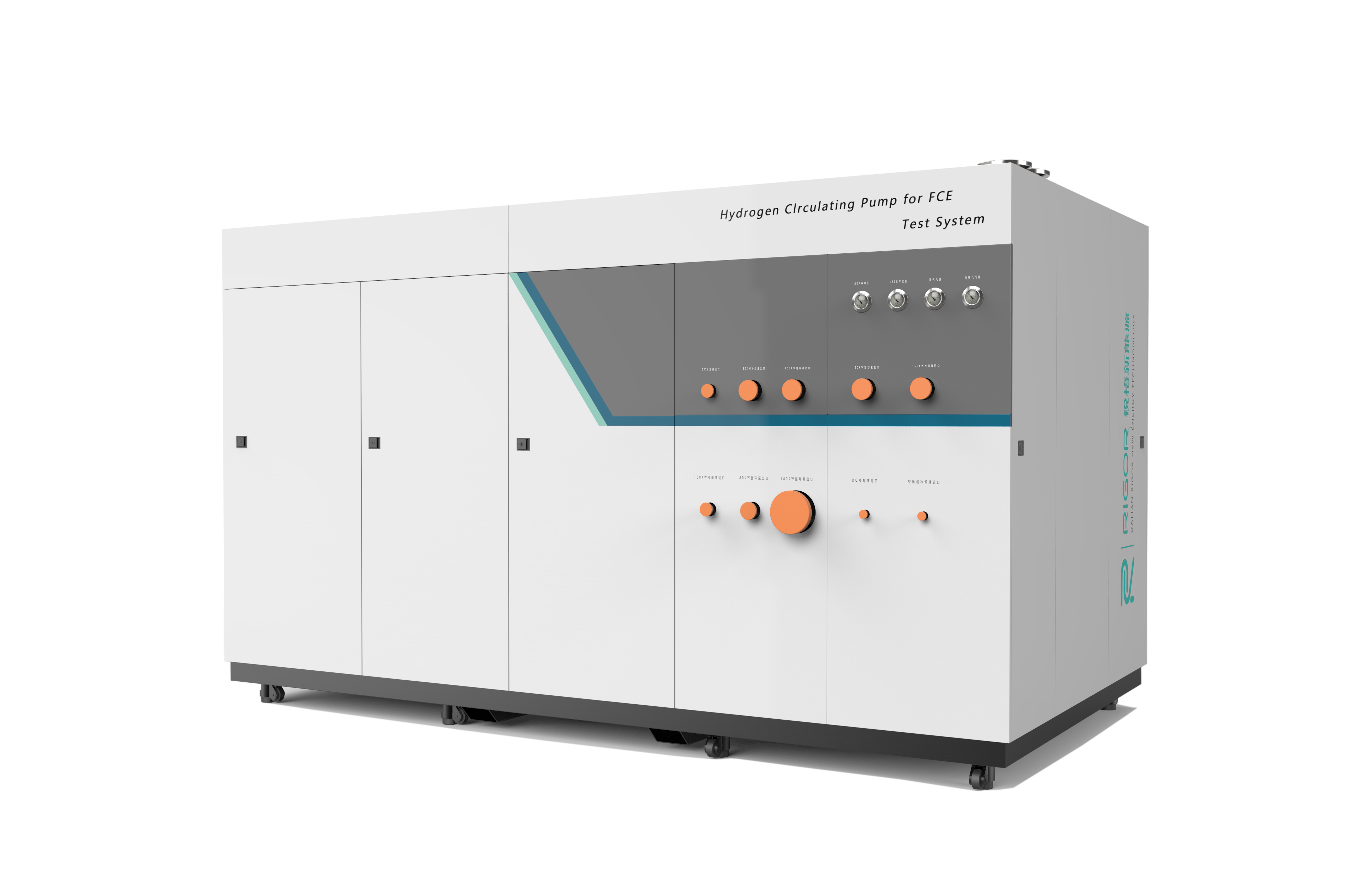

Rigor RG-FCE Fuel Cell Engine Component Testing Platform is a series of testing platforms designed for the hydrogen circulation pump, ejector, hydrogen injector, and hydrogen subsystem of the fuel cell engine, suitable for performance evaluation of fuel cell engine components with a power range of 10kW to 300kW. By carefully selecting hardware and optimizing software algorithms, the measurement accuracy and stability are ensured, and the operating conditions are precisely controllable. The platform's reliability and safety are enhanced by standardizing the application of hardware, adding safety-assured hardware, and implementing multiple safety designs in the software.

The platform features a powerful human-machine interface with various operation modes and control methods for users to choose from, enabling continuous unmanned fully automatic operation for multiple days. The status and parameters of the fuel cell system components can be adjusted and monitored online, and all monitoring data can be stored in real time.

The platform utilizes the Cdaq testing system from National Instruments, controlled by the Labview RT real-time operating system for data acquisition and communication control. It is equipped with a rich set of CAN communication interfaces for better real-time performance, precise control, and good compatibility with vehicle systems. The control systems are all from internationally renowned brands.

Air System

Air System Leak Test;

Compressor Performance Test and Reliability Test;

Humidifier Performance Test and Reliability Test;

Air System (Compressor + Humidifier) Performance Test and Reliability Test;

Air System Back Pressure Simulation Test;

Hydrogen System

Hydrogen System Gas Tightness Test;

Key Valve Testing;

Stack Heat and Humidity Resistance Simulation Test;

Hydrogen Recirculation Pump and Ejector Performance and Reliability Test;

Hydrogen System Back Pressure Simulation Test;

Heat Exchange System

Coolant Flow Rate, Pressure, and Temperature Testing;

Generate flow/pressure, flow/temperature, or temperature difference curves;

Heat Exchange System Power Consumption and Heat Dissipation Testing;

Heat Exchange System Resistance Test.
